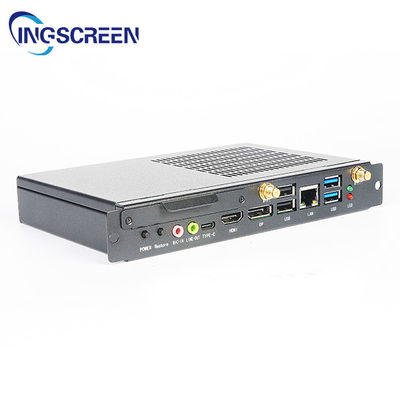

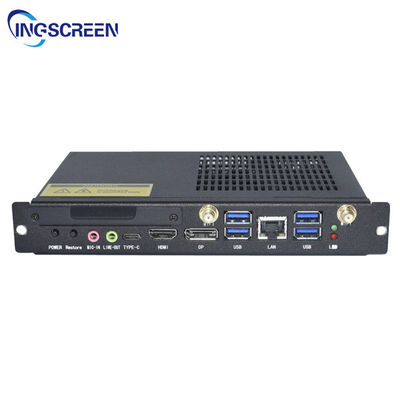

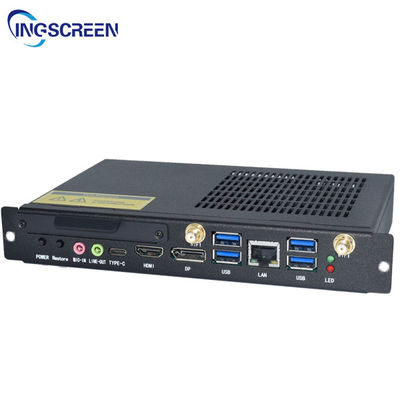

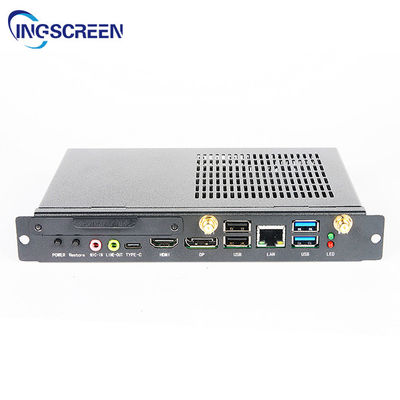

InTel Industrial OPS PC I7 10210U 10510U 4K Display Type C Port Standard OPS MINI PC
Place of Origin | Guangdong |
---|---|
Brand Name | INGSCREEN |
Certification | CE CB FCC ROHS ISO9001 |
Model Number | IS-I5G10 |
Minimum Order Quantity | 1 |
Price | $155-$170 /Unit |
Packaging Details | Carton, Wooden rack & Wooden box |
Delivery Time | 5 workdays |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 50000 Pcs/Per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Smart OPS PC | Size | 195*180*30mm |
---|---|---|---|
CPU | I5-10210U | RAM | DDR4 4G |
ROM | 128G | Cache | 6MB |
Max.frequency | 4.2 Ghz | Core | 4 |
High Light | InTel ops pc i7,Industrial ops pc i7,Type C ops computer module |
In-tel industrial OPS PC 10210U 10510U 4K display type-c port standard OPS MINI PC
The OPS system connects to interactive flat panel display through a single 80-pin port, which provides power and all communications between OPS and the display. A single connection that meets conditions such as computer power, video and audio display, USB for touch input on interactive displays and independent power input for independent use.The OPS system makes the deployment of many different large-scale display solutions much easier than usual. The solution is easy to do so that installation and setup is much faster. It reduces the need for cables and trunking, which saves purchase and service costs. OPS system can be used for multiple purposes such as classroom or lecture hall study, business introduction, group video conference and any collaborative workspace.
Mini PC Model | OPS-10U 180*120*30mm European Standards 80pin |
Processor | Support Comet Lake 10th Generation : I3 10110U,I5 10210U,I7 10510U |
Network Card |
1*RJ45 lan port, Realtek 8111H Gigabit Ethernet chip, supports Wake-on-LAN and PXE diskless boot function MINI-PCIE port,default support WIFI/3G/4G/Blue-tooth module |
CPU Brand | Intel |
Display Output | Support |
Graphics Card |
HD-MI+VGA,Intel HD Graphics.4K UHD DP optional |
Multi-Graphics Card | Not Support |
Memory | 2*DDR4 ,support 4G/8G/16G/32G/64G |
Memory Channel | Dual channels |
I/O Interfaces | 1*DC-in,1*OPS Slot,1*HD-MI,1*VGA , 2*USB3.1 , 2*USB2.0 , 1*LAN,1*AUDIO,1*ON/OFF,1*RESET,1*CMOS.1*TYPE C |
Condition | 100%New |
Storage |
Supporting these hard disks: MSATA hard disk:8G/16G/32G/64G/120G; |
Case Material | Aluminium |
Color | Black |
Case Size | 180*120*30MM |
Audio |
Realtek ALC662/660 HD digital audio decoder, 6-channel high-fidelity audio controller 1* Line-out port ,audio output 1*MIC-IN port 1*INT_SPK pin, support 8 Ohm 5 watt amplifier speaker 1*F_AUDIO,Standard audio pin 1*SPDIF pin,Digital audio pin |
Power Supply | DC12V/DC19V |
Expansion Slots | 1*Mini-PCIE ,1*MSATA,Supporting Wall Hanging,WIFI Antenna Stick,OPS Daughter Card. |
Operating System | Windows7, Windows8.1, Windows10, Linux. |
Working Temperature | -20~60℃ at 0.7m/s air flow. |
Relative Humidity | 95% |
