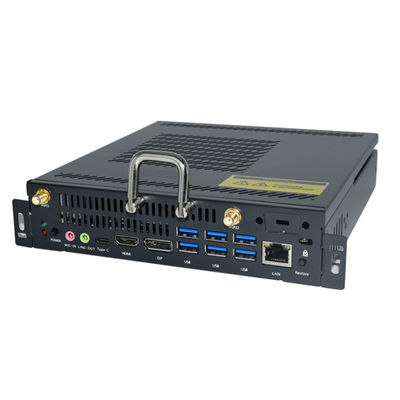

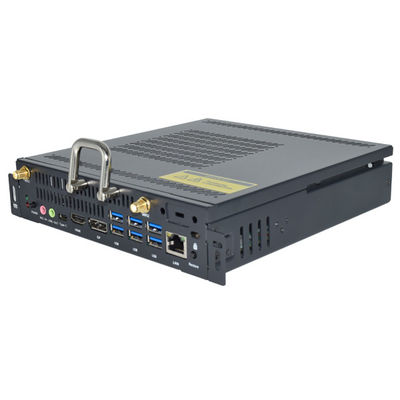

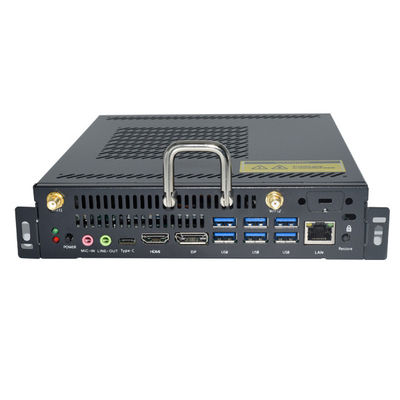

6th Gen I5 6500 Ops Pc I7 OPS Mini PC DDR4 4GB 128GB 256GB SSD For 4K IWB

Place of Origin Guangdong
Certification CE CB FCC ROHS ISO9001
Model Number I5-6500
Minimum Order Quantity 1
Price $190-$230 /Unit
Packaging Details Carton, Wooden rack & Wooden box
Delivery Time 5 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50000 Pcs/Per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Smart OPS PC Size 195*180*30mm
CPU I5-6500 RAM DDR4 4G
ROM 128G Cache 6MB
Max.frequency 3.3 Ghz Core 4
High Light

6th ops pc i7


ops pc i7 DDR4 4GB


OPS Mini PC 128GB 256GB

Leave a Message
Product Description

6th Gen i5 6500 DDR4 4GB 128GB 256GB SSD 4K Educational Whiteboard Computer OPS Mini PC



NEC Option Slot products offer an interchangeable selection of solutions including computing technology, signal distribution, media playback and wireless data transmission. The embedded solution enables compatible Displays and Projectors to be upgraded to a tailor-made solution which matches the specific demands of any vertical sector such as Transportation, Corporate, Education, Power and Utilities, Retail, and Signage.


Mini PC Model OPS-10U 180*120*30mm European Standards 80pin
Processor Support Comet Lake 10th Generation : I3 10110U,I5 10210U,I7 10510U
Network Card

1*RJ45 lan port, Realtek 8111H Gigabit Ethernet chip, supports Wake-on-LAN and PXE diskless boot function

MINI-PCIE port,default support WIFI/3G/4G/Blue-tooth module

CPU Brand Intel
Display Output Support
Graphics Card

HD-MI+VGA,Intel HD Graphics.4K UHD

DP optional

Multi-Graphics Card Not Support
Memory 2*DDR4 ,support 4G/8G/16G/32G/64G
Memory Channel Dual channels
I/O Interfaces 1*DC-in,1*OPS Slot,1*HD-MI,1*VGA , 2*USB3.1 , 2*USB2.0 , 1*LAN,1*AUDIO,1*ON/OFF,1*RESET,1*CMOS.1*TYPE C
Condition 100%New

Supporting these hard disks:

MSATA hard disk:8G/16G/32G/64G/120G;
SSD hard disk:8G/16G/32G/64G/120G;
Laptop hard disk:320G/500G/1TB.

Case Material Aluminium
Color Black
Case Size 180*120*30MM

Realtek ALC662/660 HD digital audio decoder, 6-channel high-fidelity audio controller

1* Line-out port ,audio output

1*MIC-IN port

1*INT_SPK pin, support 8 Ohm 5 watt amplifier speaker

1*F_AUDIO,Standard audio pin

1*SPDIF pin,Digital audio pin

Power Supply DC12V/DC19V
Expansion Slots 1*Mini-PCIE ,1*MSATA,Supporting Wall Hanging,WIFI Antenna Stick,OPS Daughter Card.
Operating System Windows7, Windows8.1, Windows10, Linux.
Working Temperature -20~60℃ at 0.7m/s air flow.
Relative Humidity 95%
