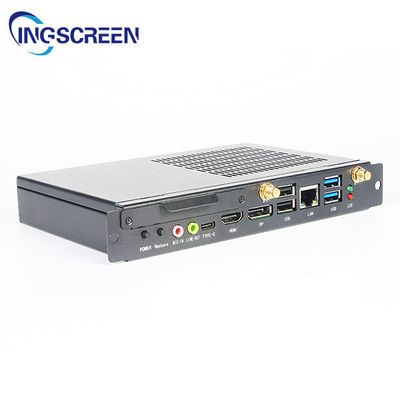

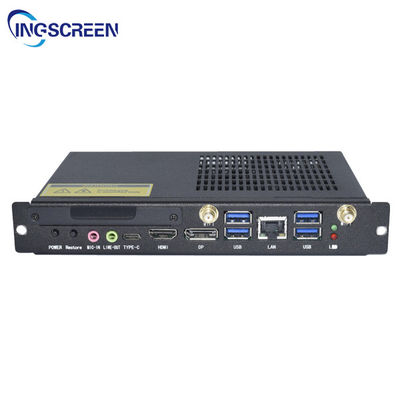

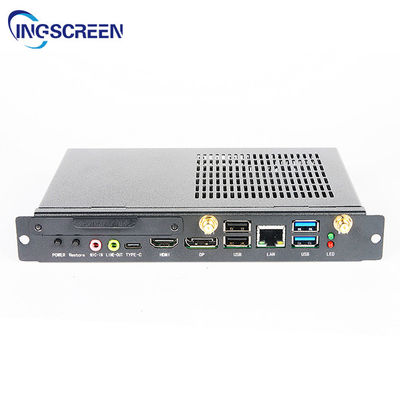

8th 10th Smart OPS PC Ops Computer Module 80pin For All In One Touch Monitor 4k

  • 8th 10th Smart OPS PC Ops Computer Module 80pin For All In One Touch Monitor 4k
  • 8th 10th Smart OPS PC Ops Computer Module 80pin For All In One Touch Monitor 4k
  • 8th 10th Smart OPS PC Ops Computer Module 80pin For All In One Touch Monitor 4k
Place of Origin Guangdong
Brand Name INGSCREEN
Certification CE CB FCC ROHS ISO9001
Model Number I7-10510U
Minimum Order Quantity 1
Price $162-$189 /Unit
Packaging Details Carton, Wooden rack & Wooden box
Delivery Time 5 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50000 Pcs/Per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Smart OPS PC Size 195*180*30mm
CPU I7-10510U RAM DDR4 4G
ROM 128G Cache 8MB
Max.frequency 4.9 Ghz Core 4
High Light

8th Smart OPS PC

,

10th Smart OPS PC

,

I7-10510U ops computer module
Leave a Message
Product Description

8th/10th i3/i5/i7 OPS-C module 80pin ops pc connector for all in one touch monitor 4k




Easy Installation

OPS products are simply slotted into the display for a fully integrated solution making external mounting obsolete. It's an elegant, unobtrusive, cable-free solution with internal connection for power, video, audio and RS232 control.



Mini PC Model OPS-10U 180*120*30mm European Standards 80pin
Processor Support Comet Lake 10th Generation : I3 10110U,I5 10210U,I7 10510U
Network Card

1*RJ45 lan port, Realtek 8111H Gigabit Ethernet chip, supports Wake-on-LAN and PXE diskless boot function

MINI-PCIE port,default support WIFI/3G/4G/Blue-tooth module
CPU Brand Intel
Display Output Support
Graphics Card

HD-MI+VGA,Intel HD Graphics.4K UHD

DP optional
Multi-Graphics Card Not Support
Memory 2*DDR4 ,support 4G/8G/16G/32G/64G
Memory Channel Dual channels
I/O Interfaces 1*DC-in,1*OPS Slot,1*HD-MI,1*VGA , 2*USB3.1 , 2*USB2.0 , 1*LAN,1*AUDIO,1*ON/OFF,1*RESET,1*CMOS.1*TYPE C
Condition 100%New
Storage

Supporting these hard disks:

MSATA hard disk:8G/16G/32G/64G/120G;
SSD hard disk:8G/16G/32G/64G/120G;
Laptop hard disk:320G/500G/1TB.
Case Material Aluminium
Color Black
Case Size 180*120*30MM
Audio

Realtek ALC662/660 HD digital audio decoder, 6-channel high-fidelity audio controller

1* Line-out port ,audio output

1*MIC-IN port

1*INT_SPK pin, support 8 Ohm 5 watt amplifier speaker

1*F_AUDIO,Standard audio pin

1*SPDIF pin,Digital audio pin
Power Supply DC12V/DC19V
Expansion Slots 1*Mini-PCIE ,1*MSATA,Supporting Wall Hanging,WIFI Antenna Stick,OPS Daughter Card.
Operating System Windows7, Windows8.1, Windows10, Linux.
Working Temperature -20~60℃ at 0.7m/s air flow.
Relative Humidity 95%
8th 10th Smart OPS PC Ops Computer Module 80pin For All In One Touch Monitor 4k 0
8th 10th Smart OPS PC Ops Computer Module 80pin For All In One Touch Monitor 4k 1
