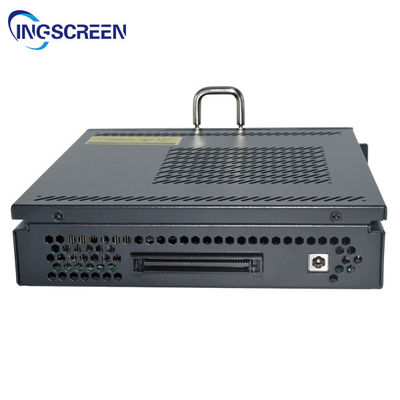

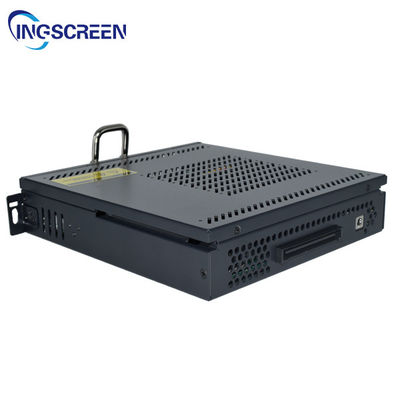

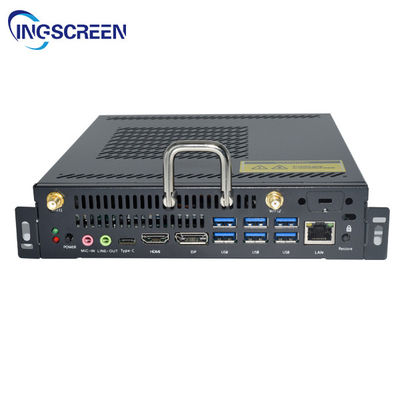

I3 I5 I7 CPU Smart OPS PC Slot Computer Ops Box 4K PC Module

  • I3 I5 I7 CPU Smart OPS PC Slot Computer Ops Box 4K PC Module
  • I3 I5 I7 CPU Smart OPS PC Slot Computer Ops Box 4K PC Module
  • I3 I5 I7 CPU Smart OPS PC Slot Computer Ops Box 4K PC Module
Place of Origin Guangdong
Brand Name INGSCREEN
Certification CE CB FCC ROHS ISO9001
Model Number I5-6500
Minimum Order Quantity 1
Price $190-$230 /Unit
Packaging Details Carton, Wooden rack & Wooden box
Delivery Time 5 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50000 Pcs/Per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Smart OPS PC Size 195*180*30mm
CPU I5-6500 RAM DDR4 4G
ROM 128G Cache 6MB
Max.frequency 3.3 Ghz Core 4
High Light

I3 Smart OPS PC

,

CPU Smart OPS PC

,

I5 I7 ops box
Leave a Message
Product Description

i3/i5/i7 CPU Standard OPS Slot Computer BOX 4K Mini OPS PC module for Digital Smart Touch Interactive Whiteboard




Windows Pro & Windows IoT Options

The OPS android Signage Player utilizes the same computing technology used in smartphones and tablets bringing benefits in reduced energy consumption and investment costs. The flexible storage extension, wired and wireless connectivity and the very powerful processing and graphics performance make it ideal for digital signage applications. Since it is an open platform product it also runs multiple certified third party digital signage software solutions from our ecopartner network. Several preinstalled apps like Signage Manager software, Media Player, Picture galleries or HTML5 browsers allow out-of the box signage solutions with unlimited android apps available to download suitable for applications in Retail, Corporate, Leisure and Museum, Quick Service restaurants, DooH and many more.

.



Mini PC Model OPS-10U 180*120*30mm European Standards 80pin
Processor Support Comet Lake 10th Generation : I3 10110U,I5 10210U,I7 10510U
Network Card

1*RJ45 lan port, Realtek 8111H Gigabit Ethernet chip, supports Wake-on-LAN and PXE diskless boot function

MINI-PCIE port,default support WIFI/3G/4G/Blue-tooth module
CPU Brand Intel
Display Output Support
Graphics Card

HD-MI+VGA,Intel HD Graphics.4K UHD

DP optional
Multi-Graphics Card Not Support
Memory 2*DDR4 ,support 4G/8G/16G/32G/64G
Memory Channel Dual channels
I/O Interfaces 1*DC-in,1*OPS Slot,1*HD-MI,1*VGA , 2*USB3.1 , 2*USB2.0 , 1*LAN,1*AUDIO,1*ON/OFF,1*RESET,1*CMOS.1*TYPE C
Condition 100%New
Storage

Supporting these hard disks:

MSATA hard disk:8G/16G/32G/64G/120G;
SSD hard disk:8G/16G/32G/64G/120G;
Laptop hard disk:320G/500G/1TB.
Case Material Aluminium
Color Black
Case Size 180*120*30MM
Audio

Realtek ALC662/660 HD digital audio decoder, 6-channel high-fidelity audio controller

1* Line-out port ,audio output

1*MIC-IN port

1*INT_SPK pin, support 8 Ohm 5 watt amplifier speaker

1*F_AUDIO,Standard audio pin

1*SPDIF pin,Digital audio pin
Power Supply DC12V/DC19V
Expansion Slots 1*Mini-PCIE ,1*MSATA,Supporting Wall Hanging,WIFI Antenna Stick,OPS Daughter Card.
Operating System Windows7, Windows8.1, Windows10, Linux.
Working Temperature -20~60℃ at 0.7m/s air flow.
Relative Humidity 95%
