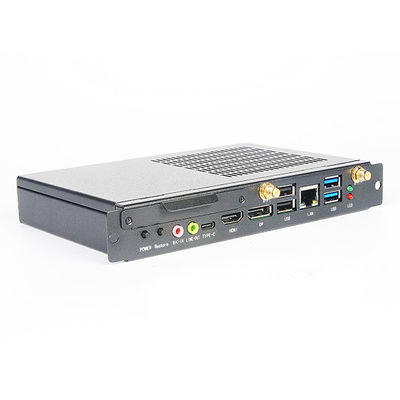

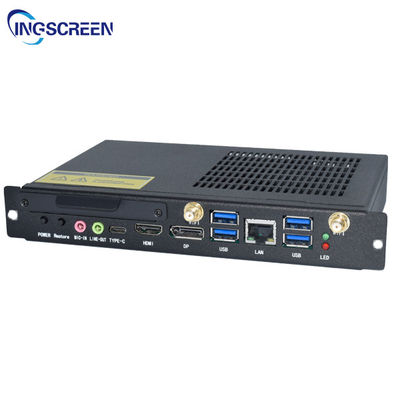

4K Display Core Smart OPS PC Ops I7 I3 I5 Pc Module For Educational Whiteboard

  • 4K Display Core Smart OPS PC Ops I7 I3 I5 Pc Module For Educational Whiteboard
  • 4K Display Core Smart OPS PC Ops I7 I3 I5 Pc Module For Educational Whiteboard
  • 4K Display Core Smart OPS PC Ops I7 I3 I5 Pc Module For Educational Whiteboard
Place of Origin Guangdong
Brand Name INGSCREEN
Certification CE CB FCC ROHS ISO9001
Model Number IS-I5G10
Minimum Order Quantity 1
Price $155-$170 /Unit
Packaging Details Carton, Wooden rack & Wooden box
Delivery Time 5 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50000 Pcs/Per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Smart OPS PC Size 195*180*30mm
CPU I5-10210U RAM DDR4 4G
ROM 128G Cache 6MB
Max.frequency 4.2 Ghz
High Light

4K DisplaySmart OPS PC

,

Smart OPS PC I7

,

I3 ops i5 pc module
Leave a Message
Product Description

INGSCREEN Embedded 4K display Core i3 i5 i7 industrial mini OPS PC for educational whiteboard





OPS(Open Pluggable Specification) is a plug-in computing modules. It is used to add computing power to interactive flat panel displays. It was announced by NEC, Intel and Microsoft in 2010.The OPS computing module run on CPU which is based on Intel and ARM, and the running operating systems include Windows of Microsoft and Android of Google. The integrated OPS computer can bring you all the functions of a computer built into the displays.



Mini PC Model OPS-10U 180*120*30mm European Standards 80pin
Processor Support Comet Lake 10th Generation : I3 10110U,I5 10210U,I7 10510U
Network Card

1*RJ45 lan port, Realtek 8111H Gigabit Ethernet chip, supports Wake-on-LAN and PXE diskless boot function

MINI-PCIE port,default support WIFI/3G/4G/Blue-tooth module
CPU Brand Intel
Display Output Support
Graphics Card

HD-MI+VGA,Intel HD Graphics.4K UHD

DP optional
Multi-Graphics Card Not Support
Memory 2*DDR4 ,support 4G/8G/16G/32G/64G
Memory Channel Dual channels
I/O Interfaces 1*DC-in,1*OPS Slot,1*HD-MI,1*VGA , 2*USB3.1 , 2*USB2.0 , 1*LAN,1*AUDIO,1*ON/OFF,1*RESET,1*CMOS.1*TYPE C
Condition 100%New
Storage

Supporting these hard disks:

MSATA hard disk:8G/16G/32G/64G/120G;
SSD hard disk:8G/16G/32G/64G/120G;
Laptop hard disk:320G/500G/1TB.
Case Material Aluminium
Color Black
Case Size 180*120*30MM
Audio

Realtek ALC662/660 HD digital audio decoder, 6-channel high-fidelity audio controller

1* Line-out port ,audio output

1*MIC-IN port

1*INT_SPK pin, support 8 Ohm 5 watt amplifier speaker

1*F_AUDIO,Standard audio pin

1*SPDIF pin,Digital audio pin
Power Supply DC12V/DC19V
Expansion Slots 1*Mini-PCIE ,1*MSATA,Supporting Wall Hanging,WIFI Antenna Stick,OPS Daughter Card.
Operating System Windows7, Windows8.1, Windows10, Linux.
Working Temperature -20~60℃ at 0.7m/s air flow.
Relative Humidity 95%
4K Display Core Smart OPS PC Ops I7 I3 I5 Pc Module For Educational Whiteboard 04K Display Core Smart OPS PC Ops I7 I3 I5 Pc Module For Educational Whiteboard 1
