20 Points Bezel Frame Ir Infrared Touch Screen Overlay 65 Inch Panel Overlay Kit

  • 20 Points Bezel Frame Ir Infrared Touch Screen Overlay 65 Inch Panel Overlay Kit
  • 20 Points Bezel Frame Ir Infrared Touch Screen Overlay 65 Inch Panel Overlay Kit
  • 20 Points Bezel Frame Ir Infrared Touch Screen Overlay 65 Inch Panel Overlay Kit
Place of Origin Guangdong
Brand Name INGSCREEN
Certification CE CB FCC ROHS ISO9001
Model Number IS-65TFP
Minimum Order Quantity 1
Price $60-$66 /Unit
Packaging Details Carton, Wooden rack & Wooden box
Delivery Time 5 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Pcs/ per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Interactive Touch Frame Size 65 Inch
Material Plastic( Aluminum Alloy Is Optional) Touch Technology IR
Points 20 Points Color Black
Port USB Response Time ＜20ms
Touch Accurancy ±2mm
High Light

20 Points infrared touch screen overlay

,

USB infrared touch screen overlay

,

ir touch screen overlay 32767 x 32767
Leave a Message
Product Description

20 points IR touch bezel frame 65 inch touch screen panel overlay kit





Infrared touch technology works through creating a dense, uniform grid of invisible (to the naked eye) LED lights and sensors to detect interaction. These lights and sensors, embedded in the bezel of the touch frame itself are constantly working so that whenever a user touches the screen, a disturbance is registered, identifying the point of contact on the display.



Product Name
IR Touch Frame
Size
19" 19.5" 21.5" 24" 27" 32" 43" 49" 55" 65" 70" 75" 86" or Customize
Material
Aluminum Alloy+Glass / Plastic+Glass
Color
Black
Interpolation Resolution
32767*32767
Respond Time
≤10ms
Touch Accuracy
± 2mm (over 90% Area)
Touch Input Method
Finger,Pomiter,Styplus pen or any other Opaque objects
Output Form
Coordinate Value
Touch Durability
Unlimited
Available Object Sizes for Touch
Φ5mm
Interface
A-Type USB/M
Electrical Specification
Scan Rate
200HZ
Communication Protocol
USB2.0 Full Speed
Transmission Rate
12Mbps
Power Supply Mode
USB
Supply Voltage
DC+5V+5%
Operating Current
<200mA
Software Specification
Multi touch
Win 7 Ultimate, Win7 professional, Win 7 home premium, Android
Single Touch
Win 7, win XP, Vista, Linux, Mac, Android and WinCE
Environmental Specification
Operating Temperature
-10 〜50°C
Storage Temperature
-20 〜60°C
Humidity
Operating: 10%~85%, non-condensing.
Storage: 10%~90%, non-condensing.
Firmware Upgrade
USB Upgrade: Win7, Win XP
ESD
EN 6100-4-2 2008:3 level. 4 KV contact discharge and 8 KV air discharge (The touch panel under test should be assembled with display devices.)
Features
Support 24 touch points, Detachable design, Anti-light Interference excellent, Less energy-intensive,more environment-friendly, A plug-and-play device.

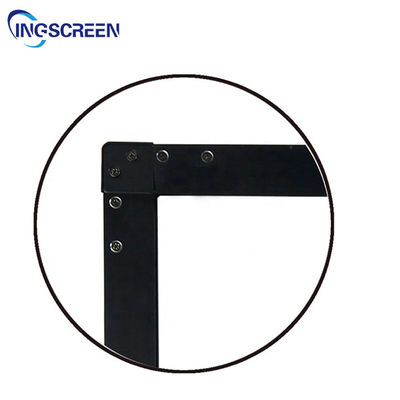

20 Points Bezel Frame Ir Infrared Touch Screen Overlay 65 Inch Panel Overlay Kit 020 Points Bezel Frame Ir Infrared Touch Screen Overlay 65 Inch Panel Overlay Kit 1

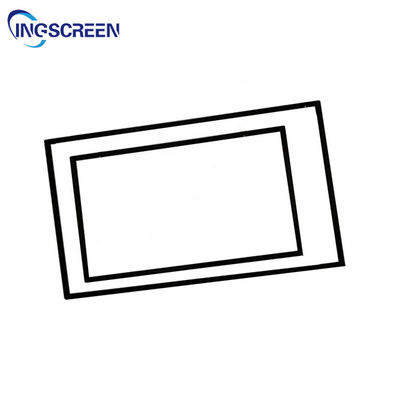

20 Points Bezel Frame Ir Infrared Touch Screen Overlay 65 Inch Panel Overlay Kit 2
