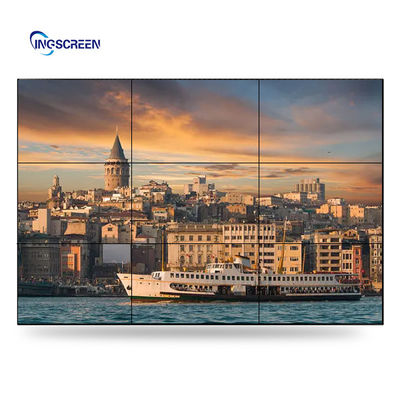

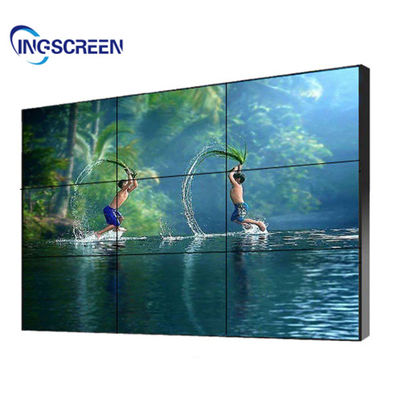

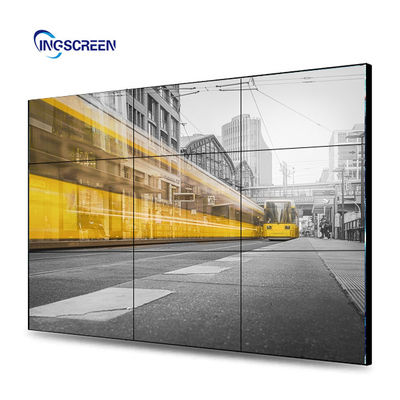

3×3 Ultra Narrow 1080P Wall Lcd Display Lcd Advertising Screen 55 Inch 16.7M Color

Place of Origin Guangdong
Certification CE CB FCC ROHS ISO9001
Model Number IS-5535B
Minimum Order Quantity 1
Price $480-$525/Unit
Packaging Details Carton, Wooden rack & Wooden box
Delivery Time 5 workdays
Payment Terms L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability 5000 Pcs/ per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Video Wall Size 55 Inch
Contrast Ration 1200:1 Response Time 8 Ms
Viewing Angle 178°(H)/178°(V) Life(typ)/(min) 50,000hrs(min.)
Display Colors 16.7M Light Source WLED
High Light

Ultra Narrow wall lcd display


1080P wall lcd display


lcd advertising screen 16.7M color

Leave a Message
Product Description

55 inch LCD Video wall 3×3 Ultra Narrow Bezel Advertising Screen 4K Lcd Video Wall screen Display



A video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. Typical display technologies include LCD panels, Direct View LED arrays, blended projection screens, Laser Phosphor Displays, and rear projection cubes. Jumbotron technology was also previously used. Diamond Vision was historically similar to Jumbotron in that they both used cathode-ray tube (CRT) technology, but with slight differences between the two. Early Diamond vision displays used separate flood gun CRTs, one per subpixel. Later Diamond vision displays and all Jumbotrons used field-replaceable modules containing several flood gun CRTs each, one per subpixel, that had common connections shared across all CRTs in a module; the module was connected through a single weather-sealed connector


Size 46inch 49inch 55inch
Resolution 1080P
Physical seam (mm) 3.5
Color support 16.7M
Brightness (cd/m²) 500
Contrast ratio 1200:1 5000:1 5000:1
Response time (ms) 8
Viewing angle (H/V) 178°/178°
Video input DVI × 1, HDMI × 1, VGA × 1
Other interfaces USB × 1, RS232 × 2, 3.5mm IR interface × 1, power on/off button × 1
Power supply AC 100 to 240V, 50/60Hz
Power consumption (W) 180
Lifetime (h) 50000
Operating temperature 0℃ to 40℃
Operating humidity 20% to 90% (non-condensing)

Product dimensions (W×H×D(mm)

1022.38*576.97*82.30 1078.34×608.36×125.08 1213.50 × 684.30 × 89.13
Weight (kg) 12.65 23.5 24.5
