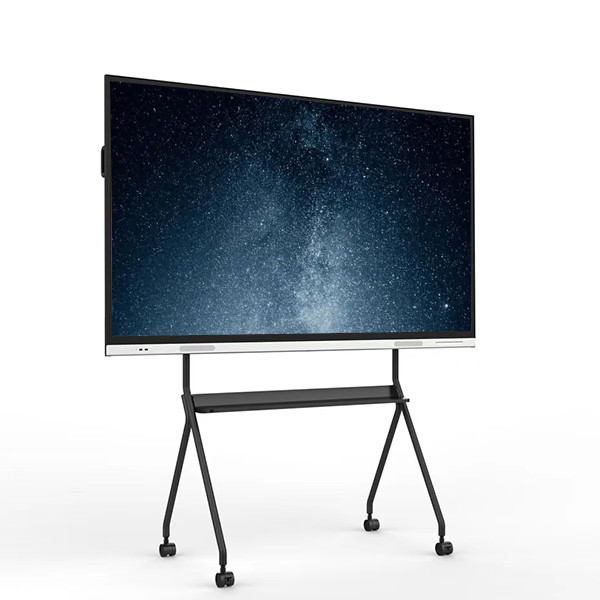

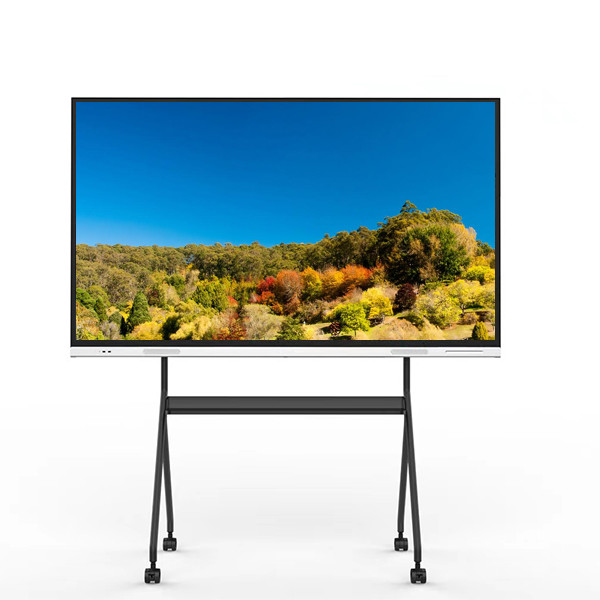

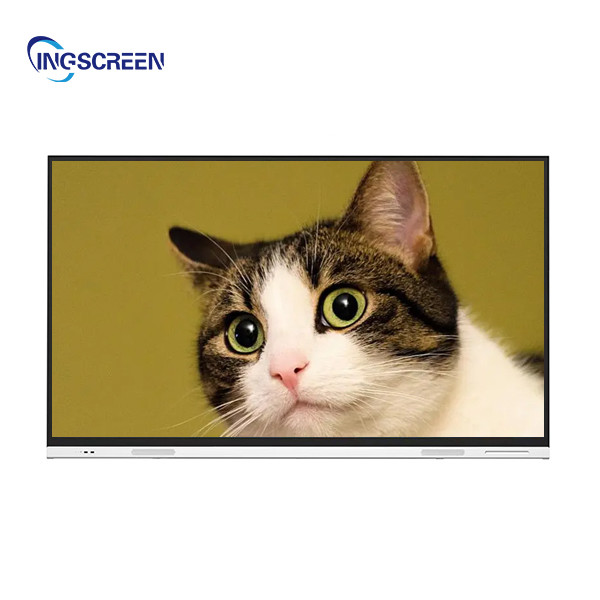

4K 86in Capacitive Interactive Whiteboard Smart Interactive Panel For Conferencing
| Place of Origin | Dongguan |
|---|---|
| Brand Name | INGSCREEN |
| Certification | CE CB FCC ROHS ISO9001 |
| Model Number | IS-65C |
| Minimum Order Quantity | 1 |
| Price | $591-$738 |
| Packaging Details | Carton, Wooden rack & Wooden box |
| Delivery Time | 5 Workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20000 Pcs/ per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Capacitive Interactive Flat Panel | Size | 65 Inch |
|---|---|---|---|
| Resolution | 4 K | Light Source | DLED |
| Visual Ratio | 16:9 | OS | Android 8.0 & Windows |
| RAM | 3G | ROM | 32G |
| High Light | 4K Capacitive Interactive Whiteboard,86in Capacitive Interactive Whiteboard,smart interactive panel For Conferencing |
||
Product Description
Multi Touch Android Capacitive Touch Screen Panel Smart Board Interactive Whiteboard For Conferencing
The capacitive touch creates the most natural touch experience with high precision
Impervious to light interference to suitable for various environment
Most smoothest projection surface works perfectly for projection and writing purpose
Plug & Play Design. Compatible with Windows®, Mac OS™, Linux™
Multi-touch supports various convenient gesture recognition functions.
Any objects on the board have no effect on the writing operation, which has largely reduced mistake-operation like an infrared interactive whiteboard.
Immune to light or dust interference, suitable for various environments
Built-in stereo speakers to enrich excellent dual Audio-visual experience
Independent power supply
Easy to use interactive software included
|
Size |
55/65/75/85/86 inch |
| Touch type | Capacitive sensor |
| Touch points | 10 |
| Screen assembly technology | Zero gap |
| Tempered glass | 4 MM |
| Backlight type | DLED |
| Visual ratio | 16:9 |
| Resolution | 3840(H)×2160(V) |
| Pixel pitch | 0.372×0.372mm |
| Frequency | 60Hz |
| Contrast ration(Typ) | 1200:1 |
| Viewing Angle | 178°(H/V) |
| Brightness | 350-400 cd/m2 |
| Contrast ration(typ)/(min) | 1400:1 |
| Audio output power | 8Ω15W*2 |
| Touch drive | HID |
| Touch sensitive method | Fingers, stylus |
| Touch screen positioning resolution | 4096*4096 |
| Touch screen communication interface | USB 2.0 |
| Response time | ＜8ms |
| Scan frequency | 100 Hz/s |
| Cursor speed | 100 Hz |
| Touch accurancy | ≤±1 mm |
| Configuration | Android8.0 2/16G RAM,16/32GB ROM. WIFI 2.4 Ghz+5G |
| OS | XP/Win7/ Win10/ LINUX/ Android |
| Front port | USB 3.0,USB 2.0,HDMI IN, TOUCH B,TYPE C, |
| I/O |
RJ45*1, HDMI*2,VGA*1,VGA AUDIO*1,YPBPR*1,AV*1,TV*1,RS232*1,USB2.0*2,SPDIF*1,Earhpone*1 TV*1, TOUCH B*1 |
| Storage environment | Storage temperature: -20℃~60℃; storage humidity: 10%RH~90%RH |
| Working environment | Working temperature: -10℃~55℃; working humidity: 10%RH~90%RH |
| Voltage | 110~240V/50~60Hz |
| Power Consumption | 270W |
| Standby Consumption | ≤ 0.5W |
| Processor | MSD848(8386) |
| OPS | CPU I3 6th, 2.4Ghz, DDR3 4G RAM, SSD 128G, 60Hz/4K |
| Chipset:Intel(R) 7 Series Chipset Family Mobile | |
| Graphics:HD Graphics 3000, Sound card:Realtek ALC622 HD | |
| Wifi | 2.4Ghz +5G |
| Accessories | Wall mount, expansion screw, touch pen, warranty card, certificate of conformity, manual, remote control Optional accessories: mobile bracket, telescopic pointer, screen projector |

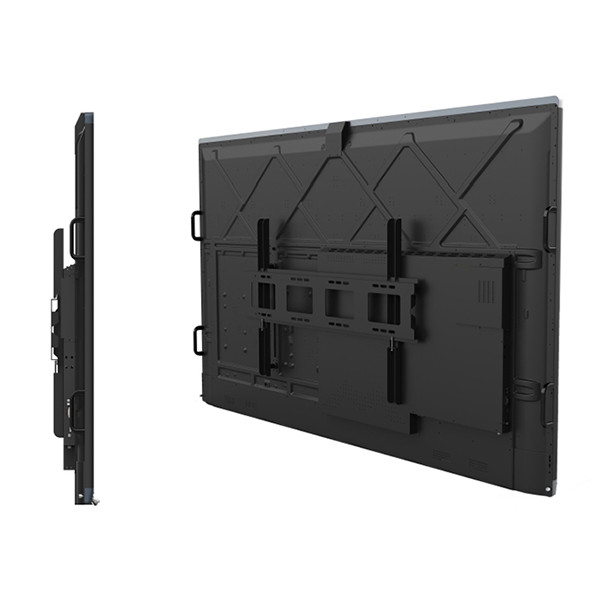

1) Aluminum alloy frame, surface sandblasting and anodic oxidation treatment, iron shell back cover, active heat dissipation;
2) 4mm physical tempered anti-riot glass; enhance the visual effect and enhance the touch experience;
3) High-speed 10-point touch writing experience, better smoothness and faster writing speed;
5) Using the OPS slot of the international general standard, the integrated plug-in design is convenient for upgrading and maintenance, and there is no visible external connection line of the computer module, and the body is beautiful;
6) Front expansion port: 1 PC-USB, 1 full-channel-USB, including 1 HDMI input on the lower side of the front, 1 TOUCH USB, 1 TYPE-C (USB2.0 protocol), which is convenient for users to connect external devices use
7) The speaker is placed in front of the sound to prevent the sound effect from deteriorating due to the embedded environment;
8) Child lock function, the button function can be shielded by setting;
9) Support gestures to pull up the menu, the menu can quickly adjust the brightness and sound, and switch the signal source
10) The front button is one-key start, which can turn on and off the screen and the host at the same time, and the operation is simple and convenient
11) Android 8.0 system support, multi-theme system setting switch at any time, startup LOGO setting customization and other functions
12) The system comes with functions such as screen projection, electronic whiteboard, and annotation
13) The screen assembly process adopts zero bonding technology, so that the display screen is naturally clear and transparent
