20 Points Touch Screen Board Classroom Nano Smart 75 Interactive Display

Place of Origin Guangdong
Brand Name INGSCREEN
Certification CE CB FCC ROHS ISO9001
Model Number IS-F850Z
Minimum Order Quantity 1
Price $2292-$2460
Packaging Details Carton, Wooden rack & Wooden box
Delivery Time 5 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 800 pcs/ per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Nano Interacitve Blackboard Touch Tech Capacitive
Size 86 Inch Aspect Ratio 16:9
Resolution 4K Brightness 400 Cd/m2
Contrast Ratio 1200:1 Touch Points 20 Points
OS Android 9.0 RAM 2G
ROM 16 G
High Light

400cd/m2 touch screen board classroom

,

FCC smartboard interactive display

,

Nano smart 75 interactive display

Leave a Message
Product Description

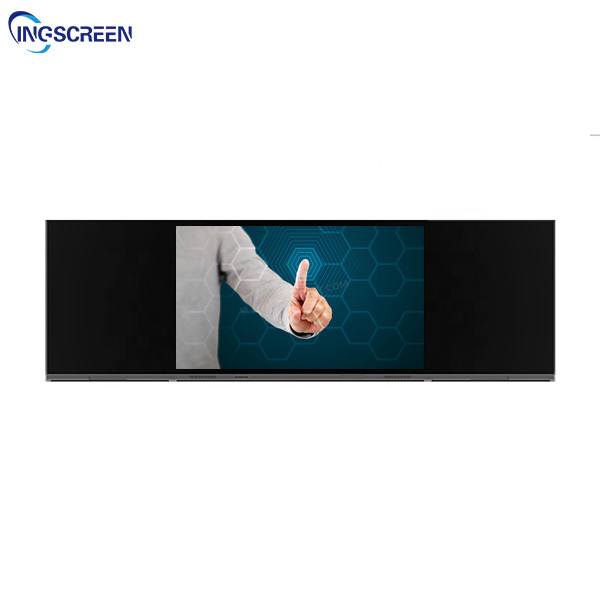

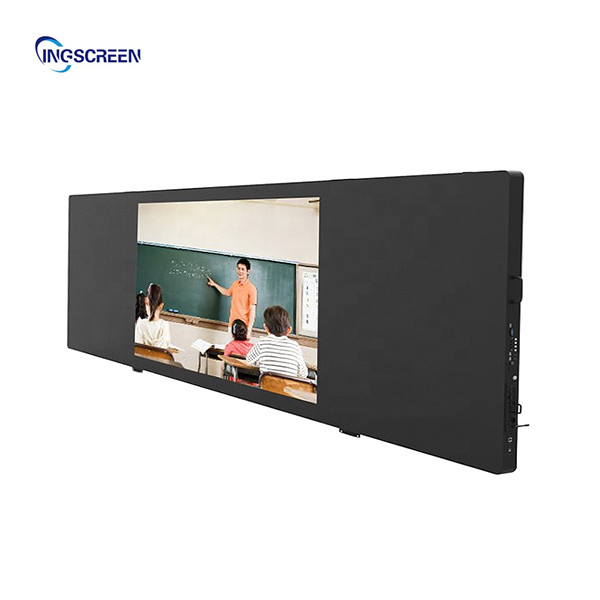

86 inch Education Equipment Classroom 20-points e-blackboard Interactive Nano Touch screen Smart Blackboard





INGSCREEEN smart nano blackboard adopts the world’s leading nano-silver control technology, which combines traditional blackboard writing and intelligent interactive experience. It is composed of two writing boards on the left and right and the display in the middle. It can support ordinary chalk, dust-free chalk and various water pens write. The same area not only realizes the chalk writing function of an ordinary blackboard, but also provides high-definition display and interactive touch, including various rich multimedia teaching functions such as playing teaching courseware, videos, pictures, animations, and annotations, realizing a rich human-computer interaction experience.





Size 75 inch 85 inch 86 inch 98 inch
Model IS-F750 IS-F850 IS-F850Z IS-F980
Display area 1649.66*927.94mm 1860.48 ×1046.52mm 1860.48 ×1046.52mm 2350x1350mm
Brightness 320cd/m² 400cd/m² 400cd/m² 400cd/m²
Screen Panel D-LED Panel
Display ratio 16:9
Contrast rate 1200:1
Response

8 ms

Resolution 3840 x 2160
Technology P-CAP
Touch point 20 points
Surface 4mm Toughened Glass, Anti-glared
Minimum Touch Object Single touch ≥1.6mm, Multiple touch ≥3mm
Cursor Speed 180 dots/s
Positioning accurancy <5ms
Life time 50000 hrs
Visual angle 178 °(H) / 178 °(V)
Stereo speaker 2*15W stereo
Voltage DC+5V±5%
Power consumption ≤2W
Compatible OS Multi-touch points for Windows 10/8/7,Android, Single touch point for Windows XP, Linux, Mac OS
Android 9.0
CPU Cortex ARM A73+A53, Quad Core 1.5GHz, GPU: MaliG51
RAM 2 GB
ROM  32 GB
Input 2*HDMI, 1*VGA, 1*PC AUDIO, 1*MIC, 1*TOUCH USB, 2*USB2.0, 1*RS232, 1*RJ45, 1*WIFI (2.4G ) , 1*OPS PC SLOT 80PIN;
Output Earphone OUT x1, AV/COAX OUTx1
Buttons Indicator light & IR receiver, Power
Power supply AC 100 V ~ 240 V, 50/60 Hz
Working Temperature 0℃~40℃
Working Humidity 20% ~ 80% RH Non-Condensing.)
Shell case Aluminum Frame, Metal back shell
Color Black
VESA Mount 600*400(4-M8)
Accessories 1*Remote control,2*Mangetic pen,1* Power cable,1*USB cable.1* Wall mounted bracket
Optional OPS PC / Movable Stand / Electric Stand – to be advised
